Detailed Specifications

Click on a link below for more details

• 115mm (4") Dia. Oblio

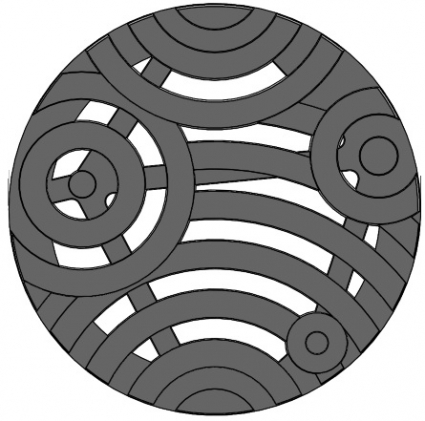

  Our Oblio motif resembles ripples from drops falling on a surface of water. Our 4" Dia. Oblio pipe cover will fit into any 3" or 4" SDR pipe, and would be the extra touch to your design.

  Spec Sheet
  Dimensions	115.316mm Dia. x 25.4mm (4.54" x 1") Dia.
  Fits	Standard: 3" and 4" PVC Pipes
  Material	Ductile Iron
  Standard Finish	Baked On Oil
  Weight	2.5
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Silicone Bronze Cast Aluminum Cast Bronze
  Product ID	OX4DiaI99PG
  Copyright Registration No.	VA 1-964-887



• 141mm (6") Dia. Oblio





  Spec Sheet
  Dimensions	141.478mm Dia. x 3.968mm (5.57" Dia. x 0.156")
  Fits	Jr Smith AO6NB
  Material	Cast Bronze
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	1
  Free Drain Area	15%
  Approximate GPM*	5.56
  Recycled Content	80%
  ADA Compliant	Yes
  Product ID	OS6DiaB43

  * Gallons per minute is based on rudimentary calculation and will vary based on pattern, and depending on flow conditions. If more detailed calculations are needed please contact Iron Age directly.



• 297mm (12") Sq. Oblio





  Spec Sheet
  Dimensions	296.8625mm Sq. x 28.575mm (11.67" Sq. x 1.125" H)
  Fits	NDS™ 1200 Catch Basin
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	18
  Free Drain Area	21%
  Approximate GPM*	39.6
  Recycled Content	80%
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	ON12-12I12
  Copyright Registration No.	VA 1-814-259

  * Gallons per minute is based on rudimentary calculation and will vary based on pattern, and depending on flow conditions. If more detailed calculations are needed please contact Iron Age directly.



• 300mm (12") Sq. Oblio Heel Proof





  This cast metal Channel Drain grate design suggests the ripples from drops falling on a surface of water. This drain grate is ideal for high pedestrian traffic areas and driveways. All drain grates are ADA compliant and made from recycled materials. All grates can be cast in a variety of metals.

  Spec Sheet
  Dimensions	300.038mm Sq. x 20.64mm (11.8125" Sq. x 0.813")
  Fits	Iron Age Custom Frame
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	15
  Free Drain Area	16%
  Approximate GPM*	30.18
  Recycled Content	80%
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	OX12-12I99-HP

  * Gallons per minute is based on rudimentary calculation and will vary based on pattern, and depending on flow conditions. If more detailed calculations are needed please contact Iron Age directly.



• 604 x 452mm (24" x 18" ) Oblio





  This cast metal Channel Drain grate design suggests the ripples from drops falling on a surface of water. This drain grate is ideal for high pedestrian traffic areas and driveways. All drain grates are ADA compliant and made from recycled materials. All grates can be cast in a variety of metals.

  Spec Sheet
  Dimensions	604.838mm x 452.438mm x 38.1mm (23.8125" x 17.8125" x 1.5")
  Fits	East Jordan Iron Works 7700 Series
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	60
  Free Drain Area	23%
  Approximate GPM*	130.16
  Recycled Content	80%
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Silicone Bronze Aluminum
  Product ID	OX18-24I61

  * Gallons per minute is based on rudimentary calculation and will vary based on pattern, and depending on flow conditions. If more detailed calculations are needed please contact Iron Age directly.



• 606mm (24") Dia. Tulie





  Creative iteration of our Oblio design, but incorporating thistles, also know as tulies.

  Spec Sheet
  Dimensions	606.425mm Dia x 25.4mm (23.875" Dia x 1")
  Fits	Neenah Deeter-1256
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	55
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	TUX24DiaI99



• 604mm (24") Sq. Oblio





  This cast metal Channel Drain grate design suggests the ripples from drops falling on a surface of water. This drain grate is ideal for high pedestrian traffic areas and driveways. All drain grates are ADA compliant and made from recycled materials. All grates can be cast in a variety of metals.

  Spec Sheet
  Dimensions	604.75mm Sq. x 50.8mm (23.809" Sq. x 2")
  Fits	NDS 2400
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	115
  Free Drain Area	12.5%
  Approximate GPM*	94.32
  Recycled Content	80%
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	ON24-24I14

  * Gallons per minute is based on rudimentary calculation and will vary based on pattern, and depending on flow conditions. If more detailed calculations are needed please contact Iron Age directly.



• 610mm (24") Sq. Oblio Heel Proof





  Spec Sheet
  Dimensions	609.6mm Sq. x 38.1mm (24" Sq. x 1.5")
  Fits	Iron Age Custom Frame
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	75
  Recycled Content	80%
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	OX24-24I99HP
  Copyright Registration No.	VA 1-964-895



• 641mm (25") Dia. Oblio Manhole





  Spec Sheet
  Dimensions	641.35mm x 38.1mm (25.25" Dia. x 1.5")
  Fits	East Jordan Works # V1600-3 REV
  Material	Cast Iron
  Standard Finish	Raw
  Optional Finish (call for pricing)	Baked On Oil Finish Powdercoating
  Weight	107
  ADA Compliant	Yes
  Optional Materials (call for pricing)	Cast Aluminum Cast Bronze
  Product ID	OE25diaIMH
  Copyright Registration No.	VA 1-970-739
