Cast Iron Channel Grate – Que 5″ x 20″ Heel Proof

This product uses our range of standard 5 inch channels and accessories, available in plastic, polyconcrete, and fibre composite.

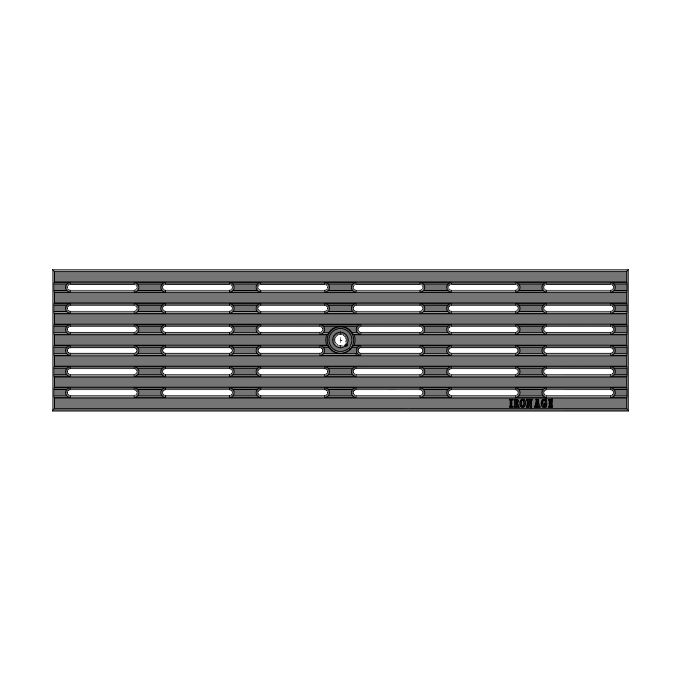

Que 5" x 20" Heel Proof

Cast Iron Channel Grate

Product Description

We took the vertical lines of a traditional slotted grate and turned them sideways, giving our Que pattern a long, lean look with eye-catching depth and dimension.

Load Class
Product Spec
Que 5" x 20" Heel Proof
Dimensions122.17 mm x 496.82 mm x 20.57 mm
MaterialCast Ductile Iron
Standard Finish Raw
Optional Finish(es)Post Rust Finish, Powder Coating
Weight6.22 kg
Free Drain Area16.41%
Gallons Per Minute (GPM)20.24
Recycled Content80%

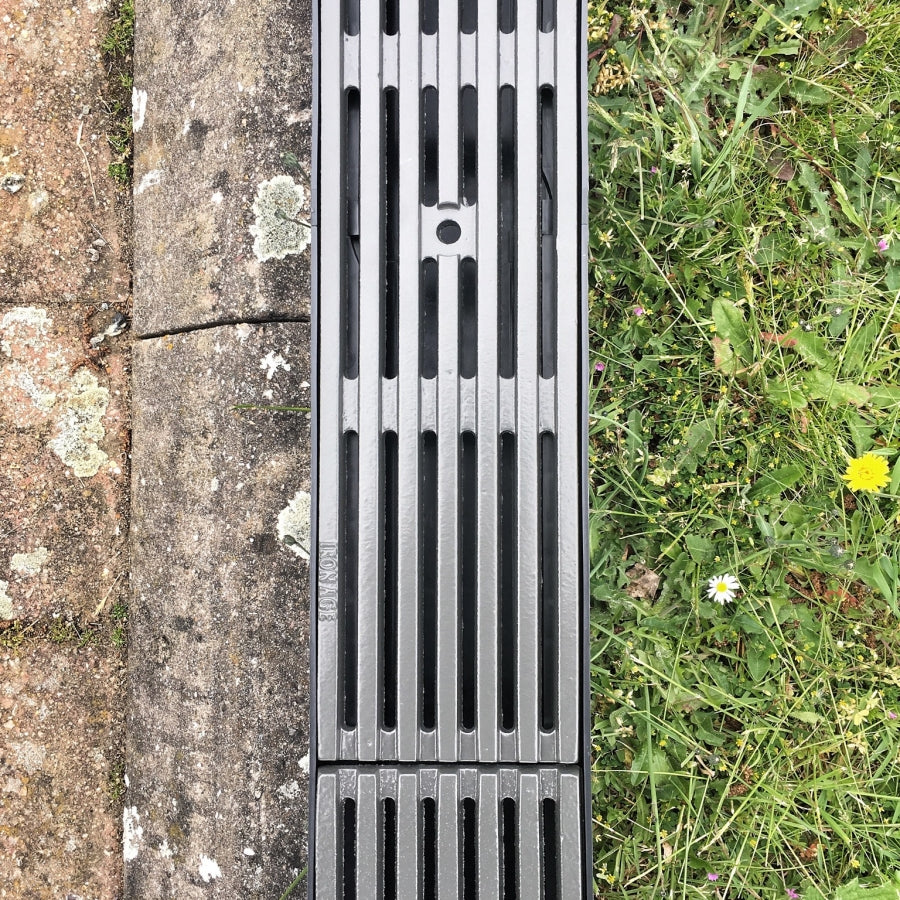

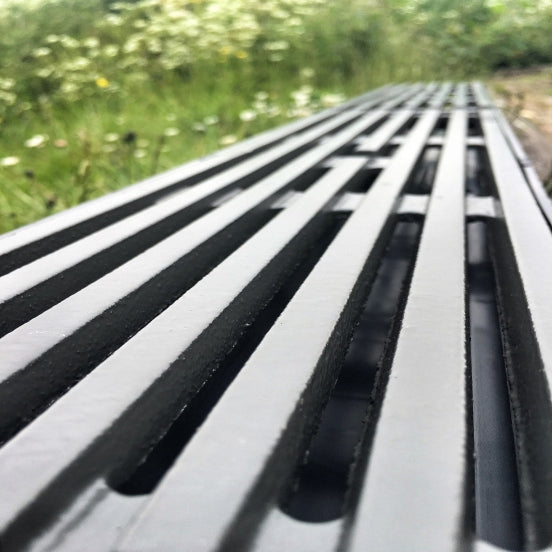

Product Gallery
