Cast Iron Channel Grate – Kurf 5″ x 20″

This product uses our range of standard 5 inch channels and accessories, available in plastic, polyconcrete, and fibre composite.

Kurf 5" x 20"

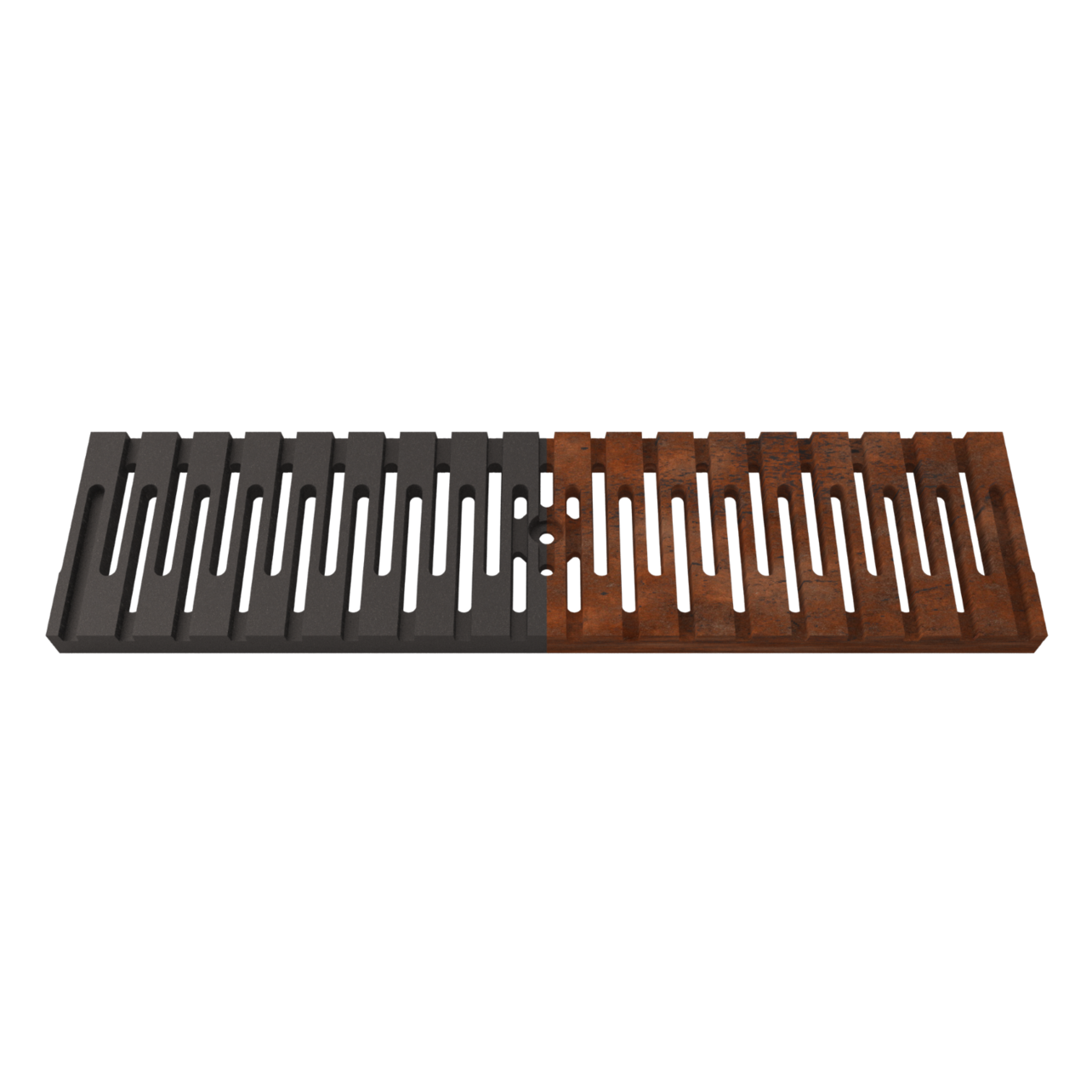

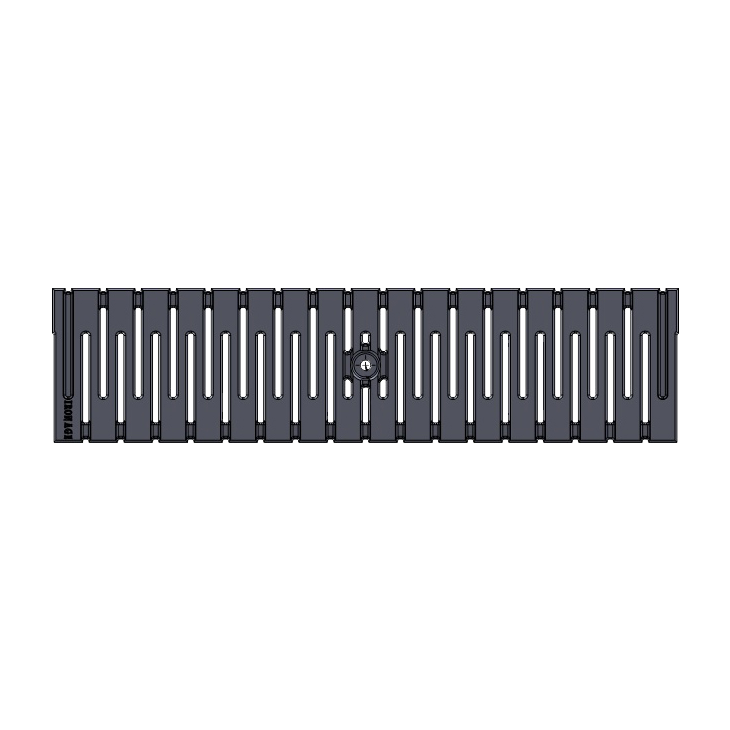

Cast Iron Channel Grate

Product Description

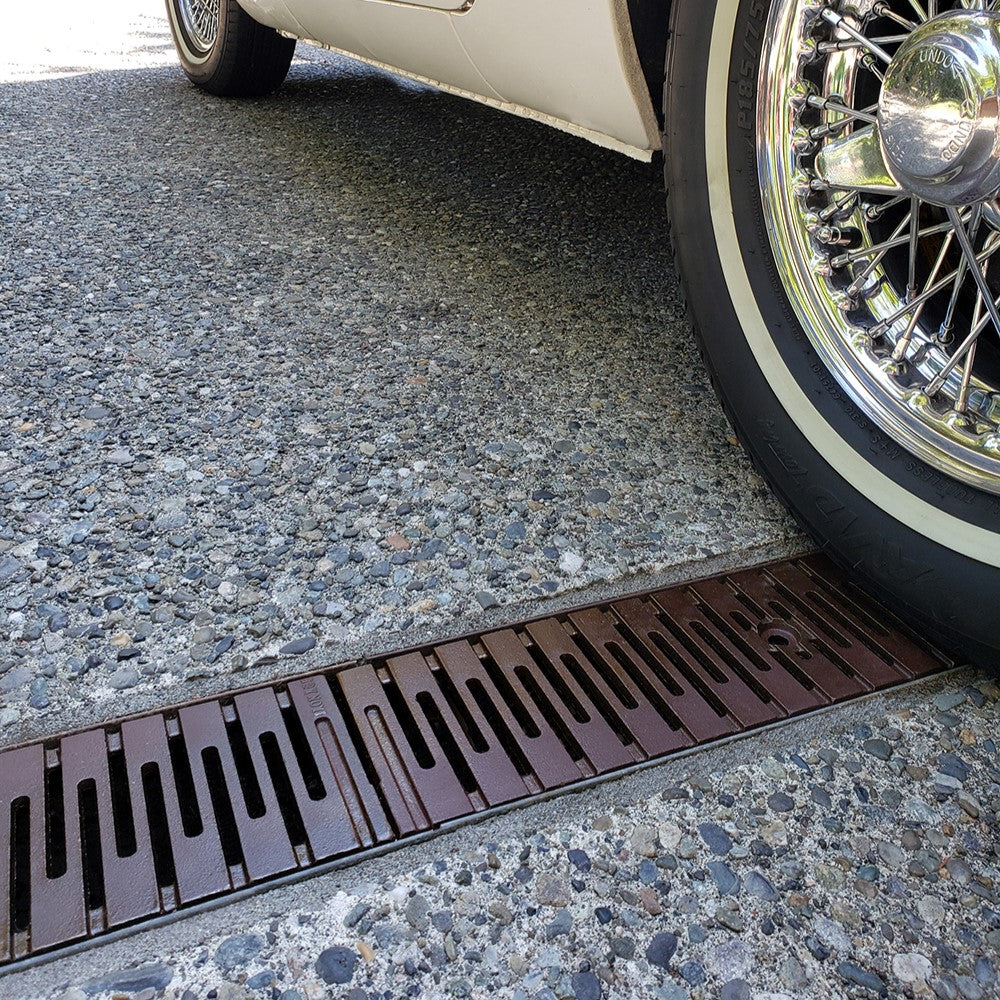

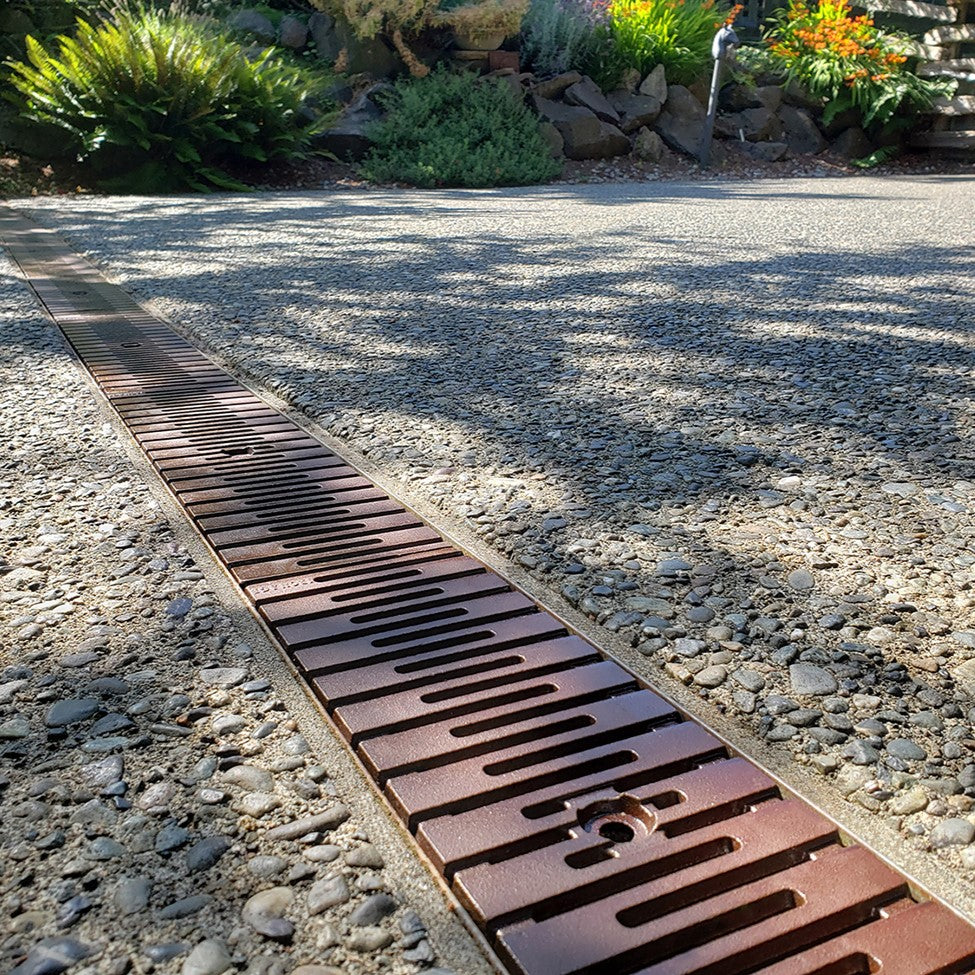

Our newest linear pattern is a unique take on a type of cut normally made to facilitate the bending of a piece of wood. The “cuts” create a notched appearance that allows for plenty of drainage while still offering heel proof protection.

Load Class
Product Spec
Kurf 5" x 20" Heel Proof
Dimensions122.17 mm x 496.82 mm x 20.57 mm
MaterialCast Ductile Iron
Standard Finish Raw
Optional Finish(es)Post Rust Finish, Powder Coating
Weight5.23 kg
Free Drain Area18.3%
Gallons Per Minute (GPM)22.65
Recycled Content80%
Product Gallery
