This product uses our range of standard 5 inch channels and accessories, available in plastic, polyconcrete, and fibre composite.
Oblio 5" x 20"

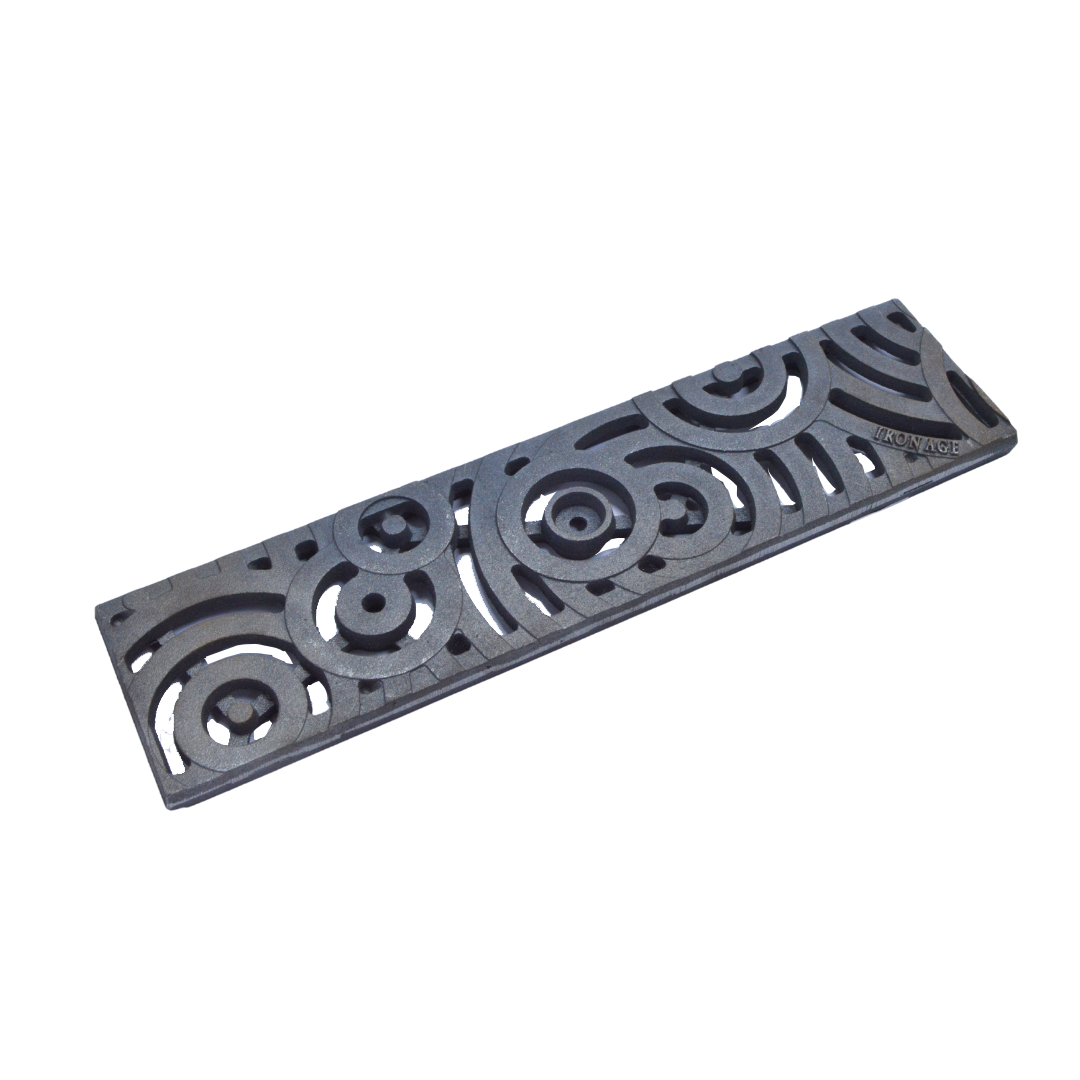

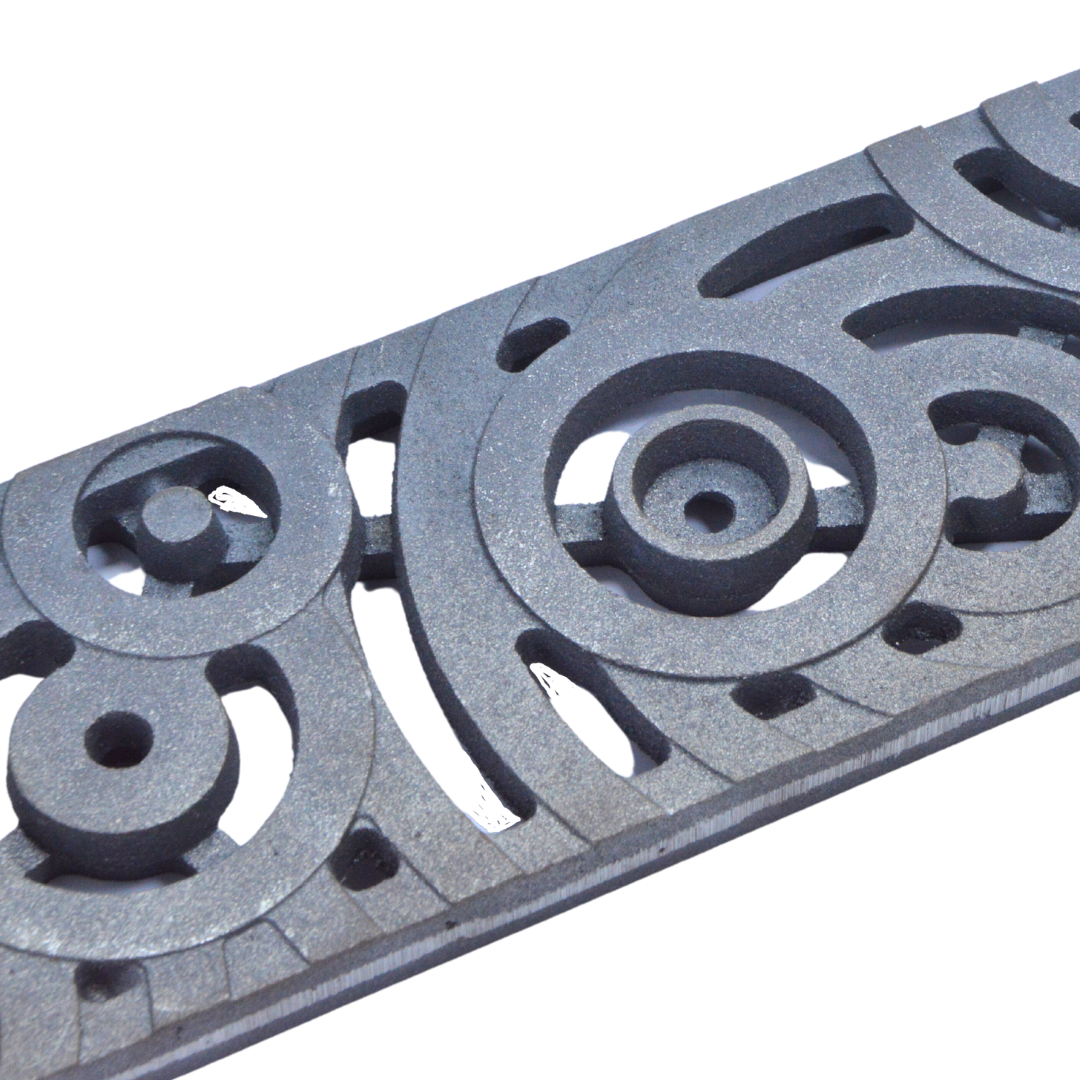

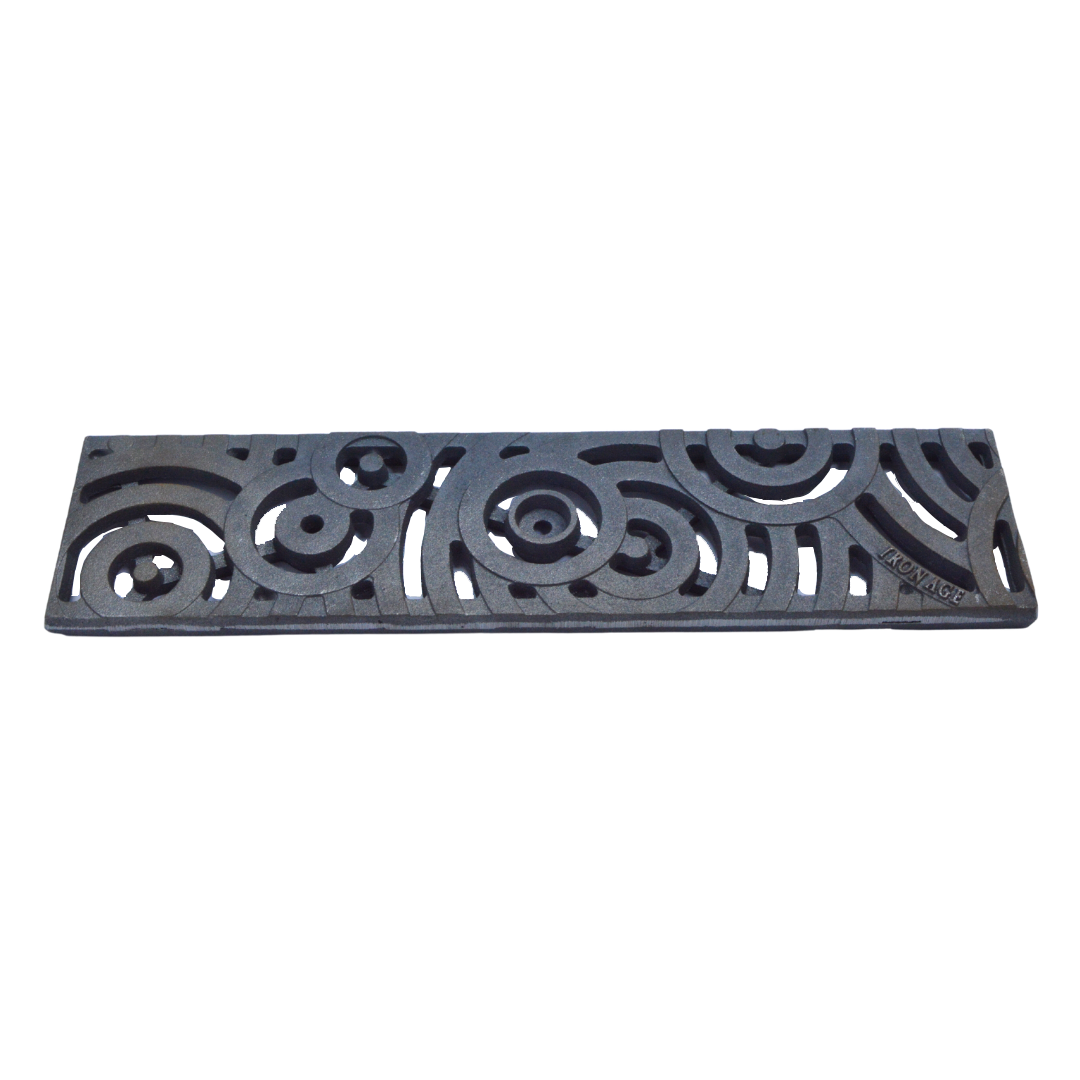

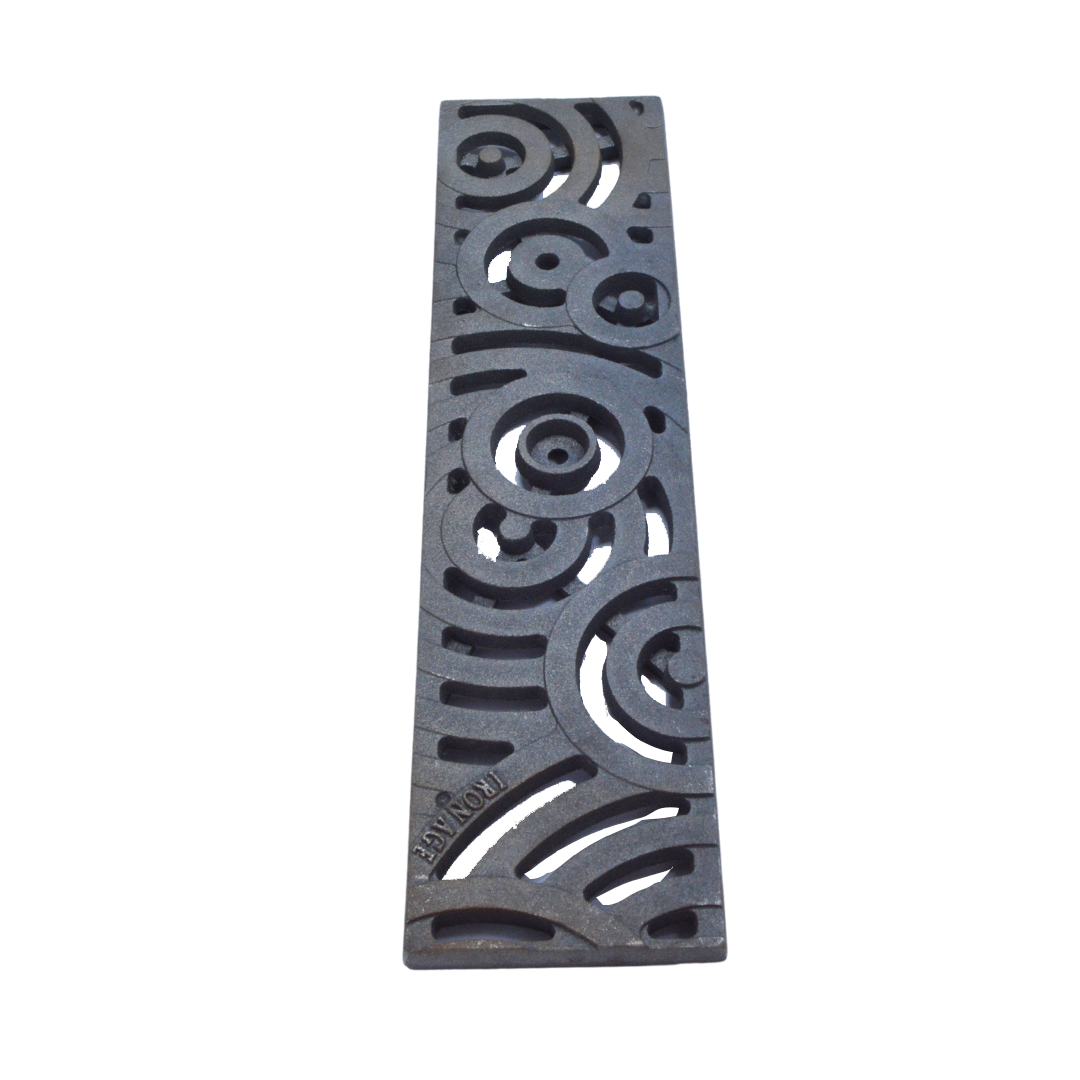

Cast Iron Channel Grate
| Product Description |
|---|

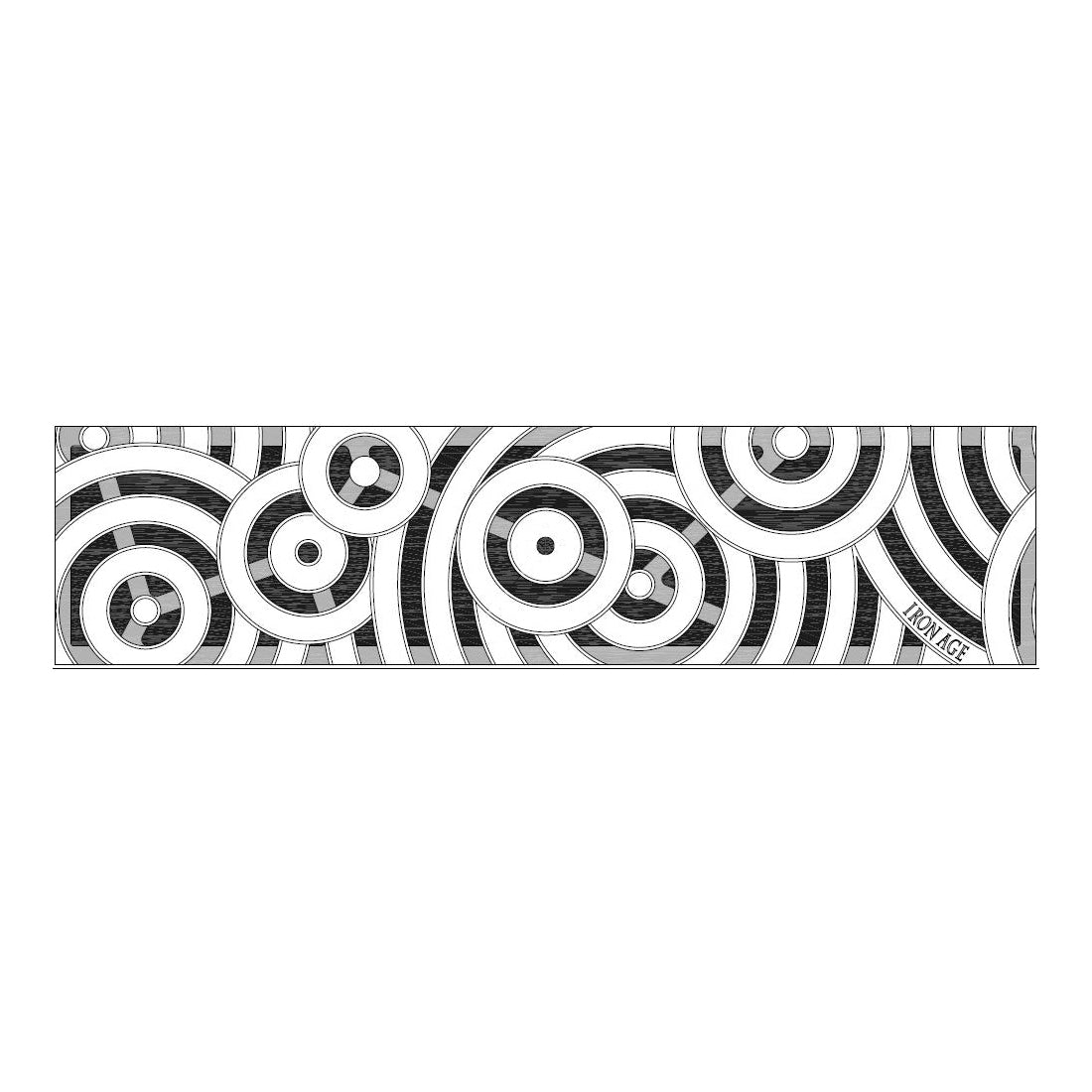

With a pattern that suggests ripples forming on the surface of water, our trademark Oblio design will add distinctive style to a wide range of architectural applications.
| Oblio 5" x 20" | |
|---|---|
| Dimensions | 122.17 mm x 496.82 mm x 20.57 mm |
| Material | Cast Ductile Iron |
| Standard Finish | Raw |

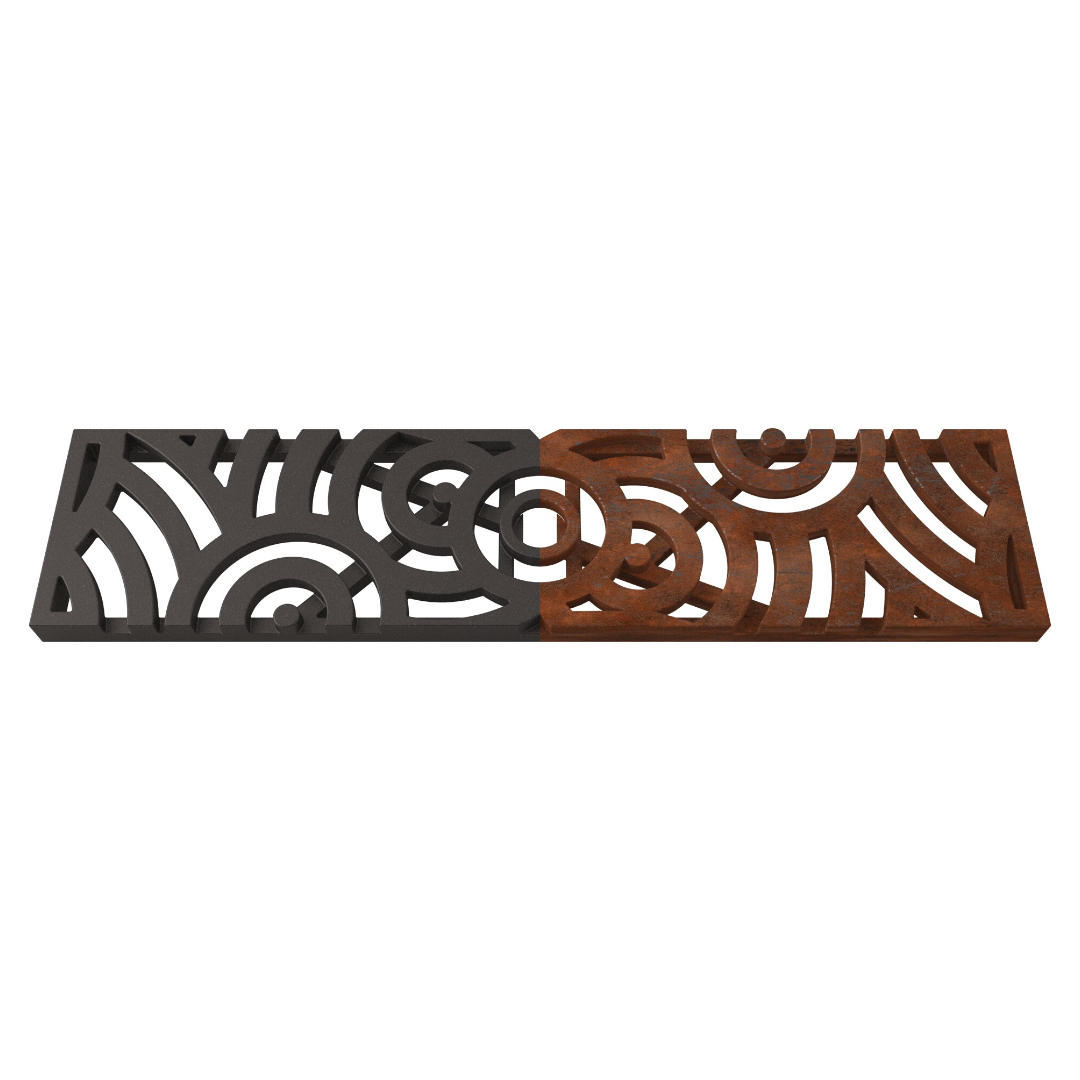

| Optional Finish(es) | Post Rust Finish, Powder Coating |
| Weight | 5.44 kg |
| Free Drain Area | 19.22% |
| Gallons Per Minute (GPM) | 23.71 |
| Recycled Content | 80% |

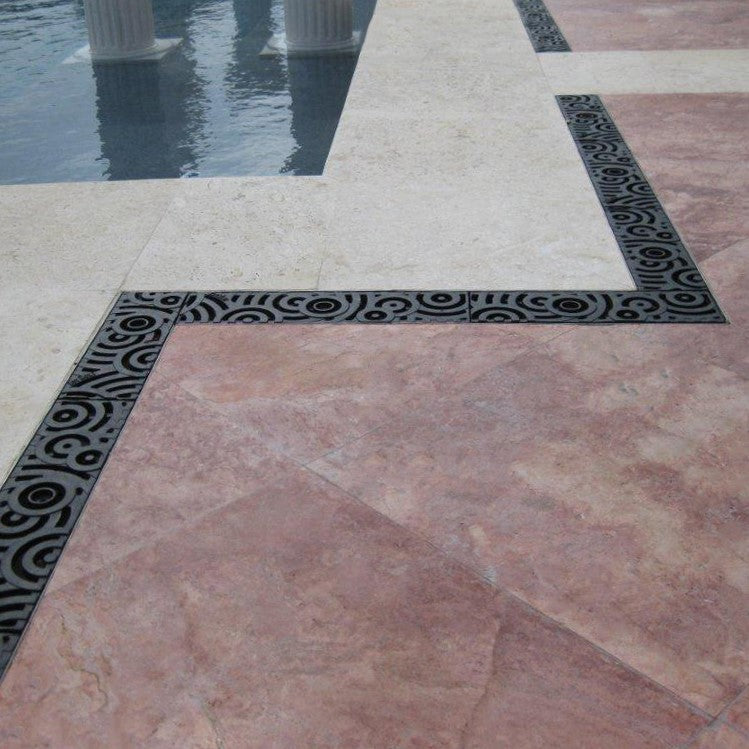

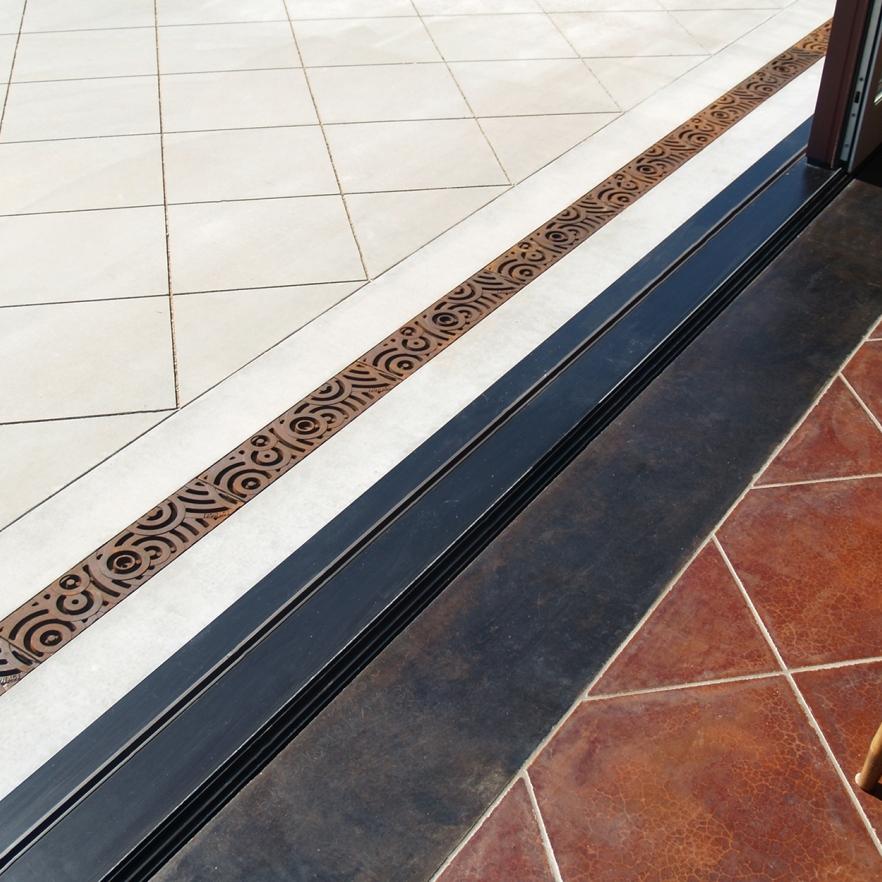

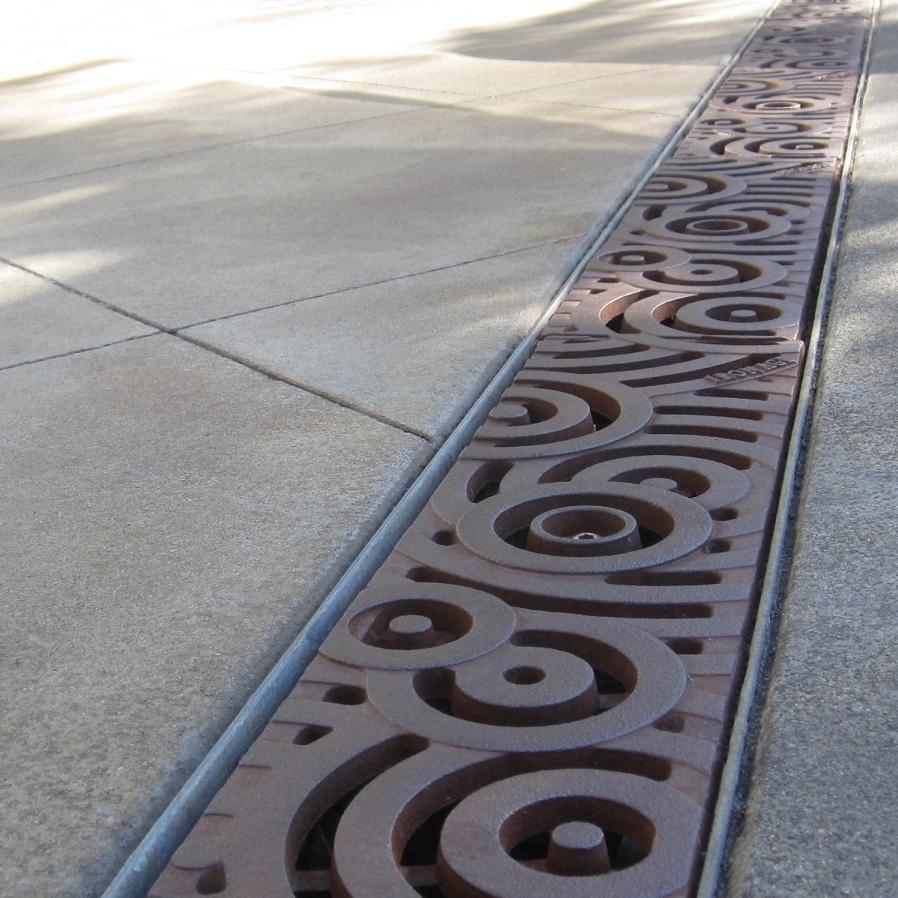

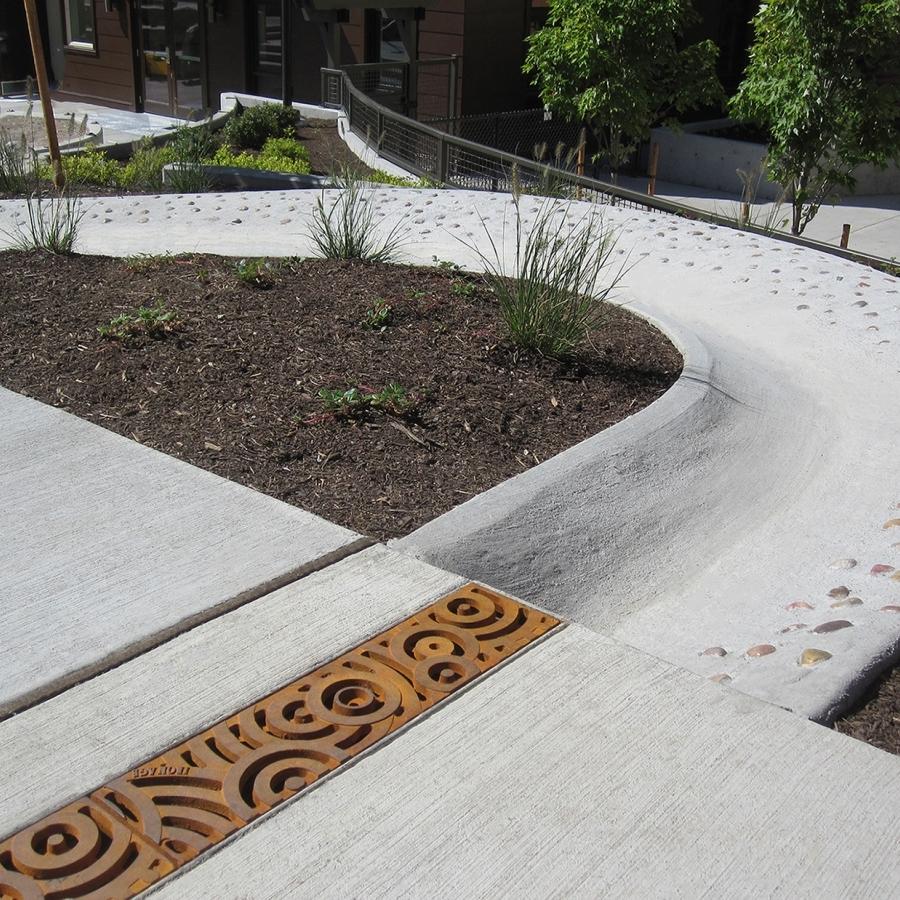

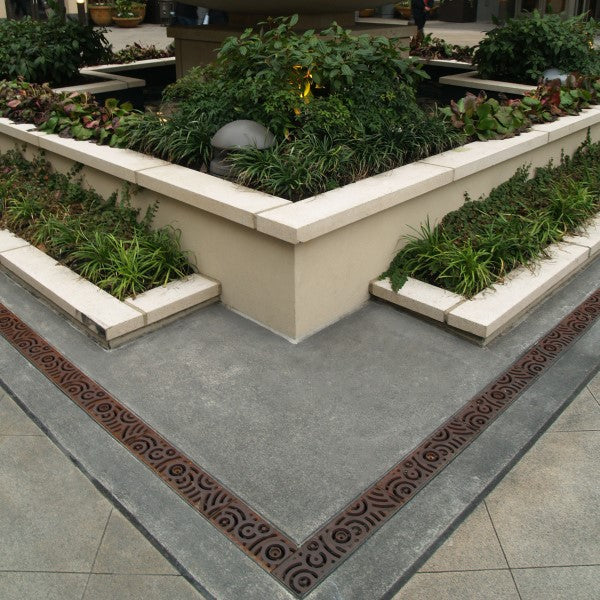

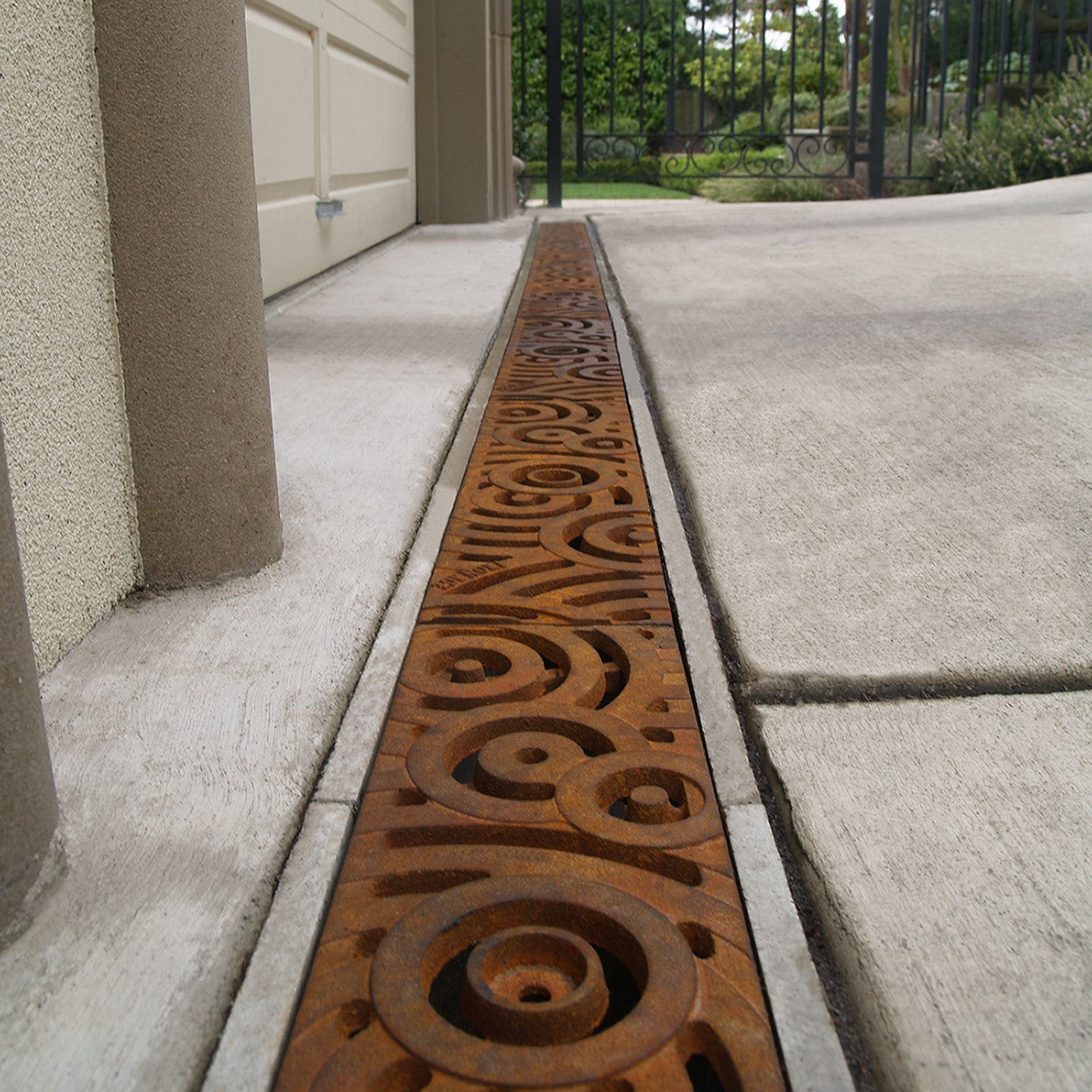

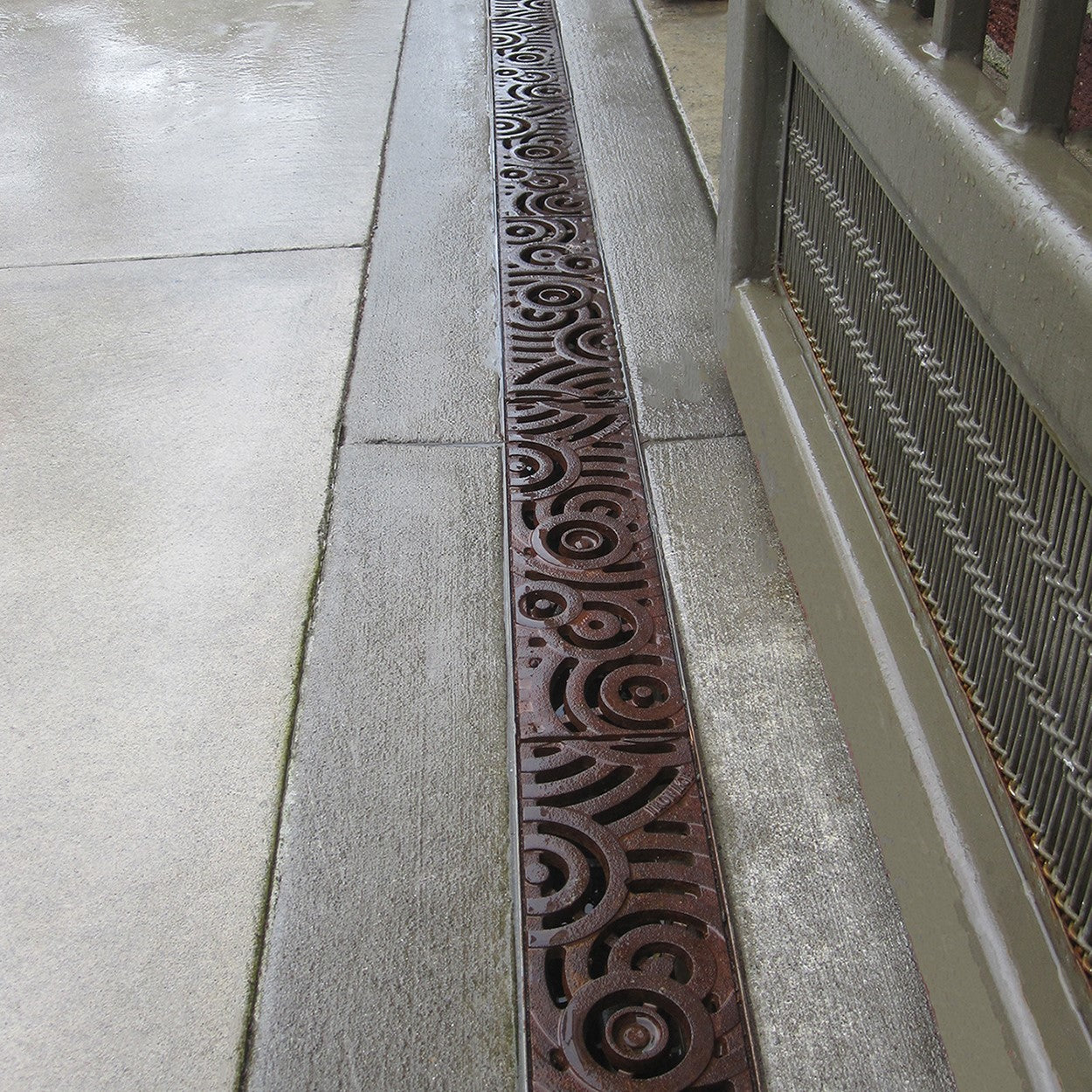

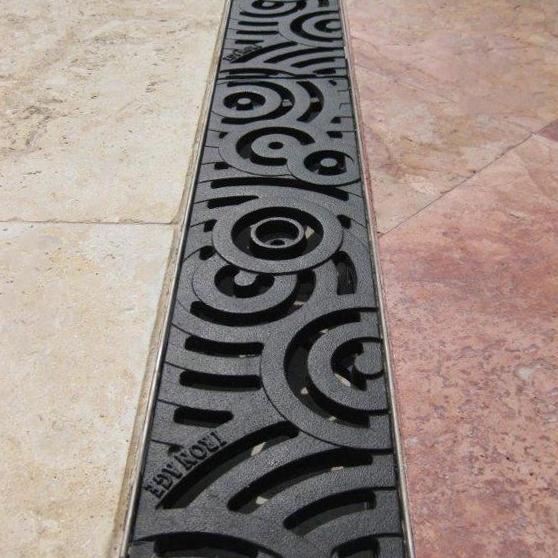

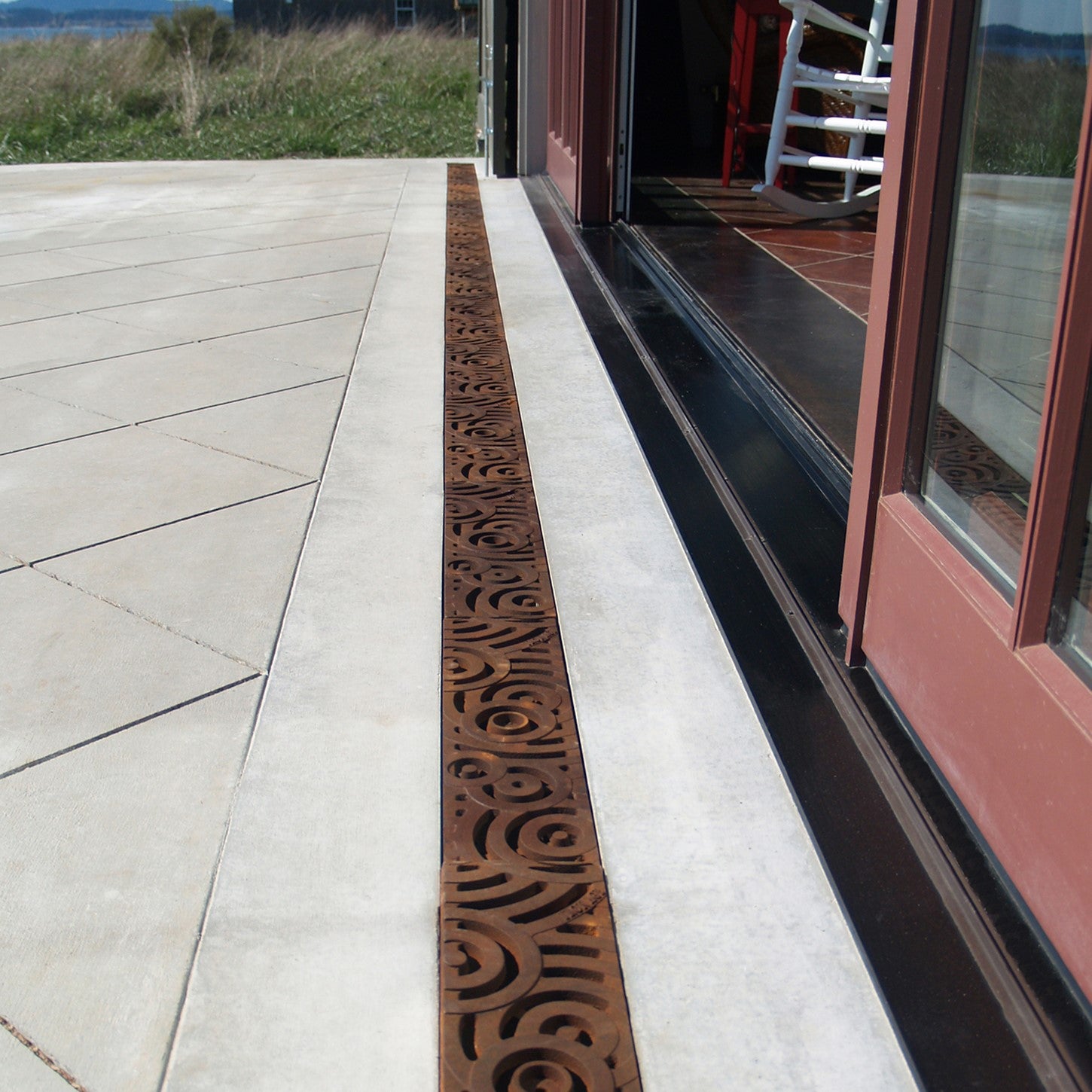

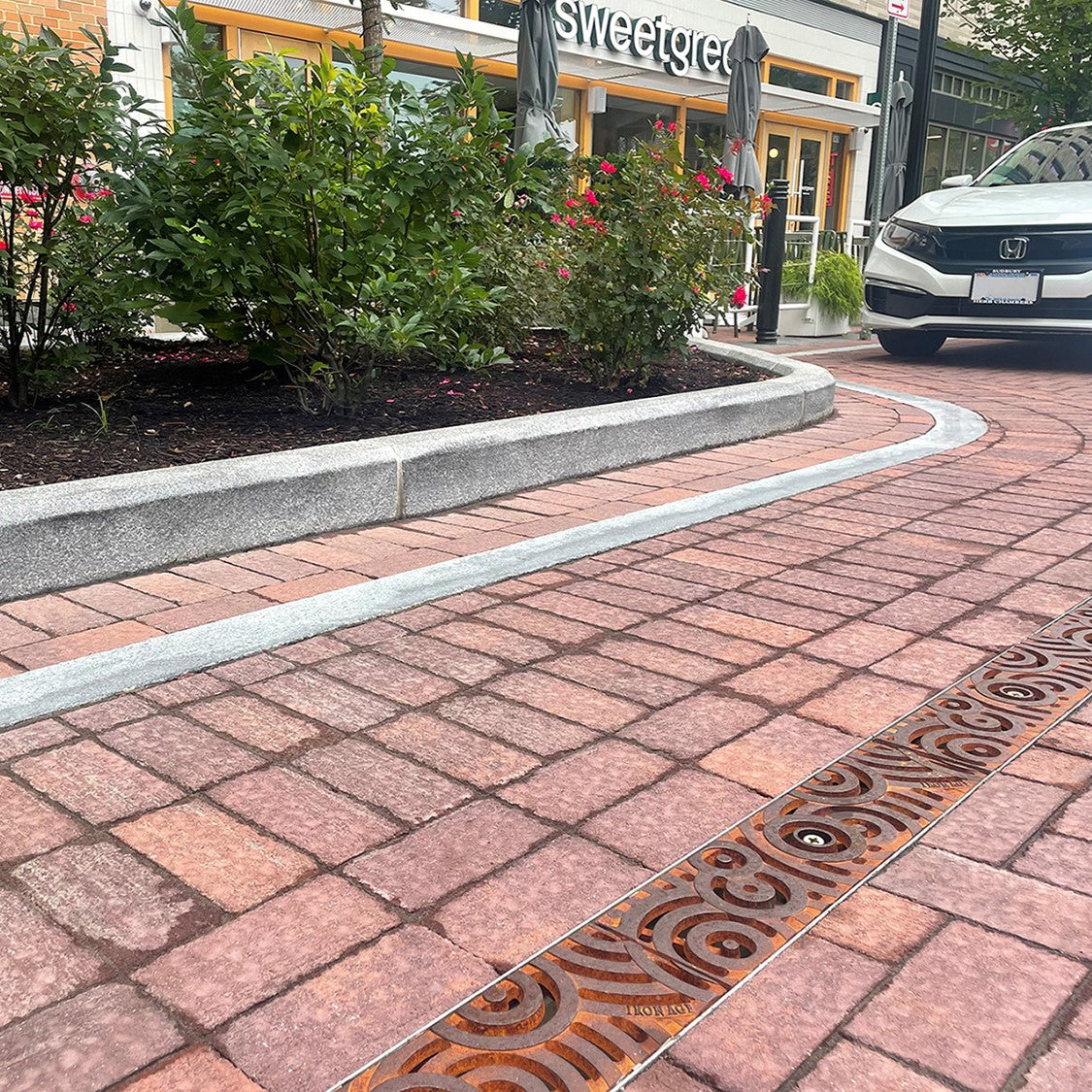

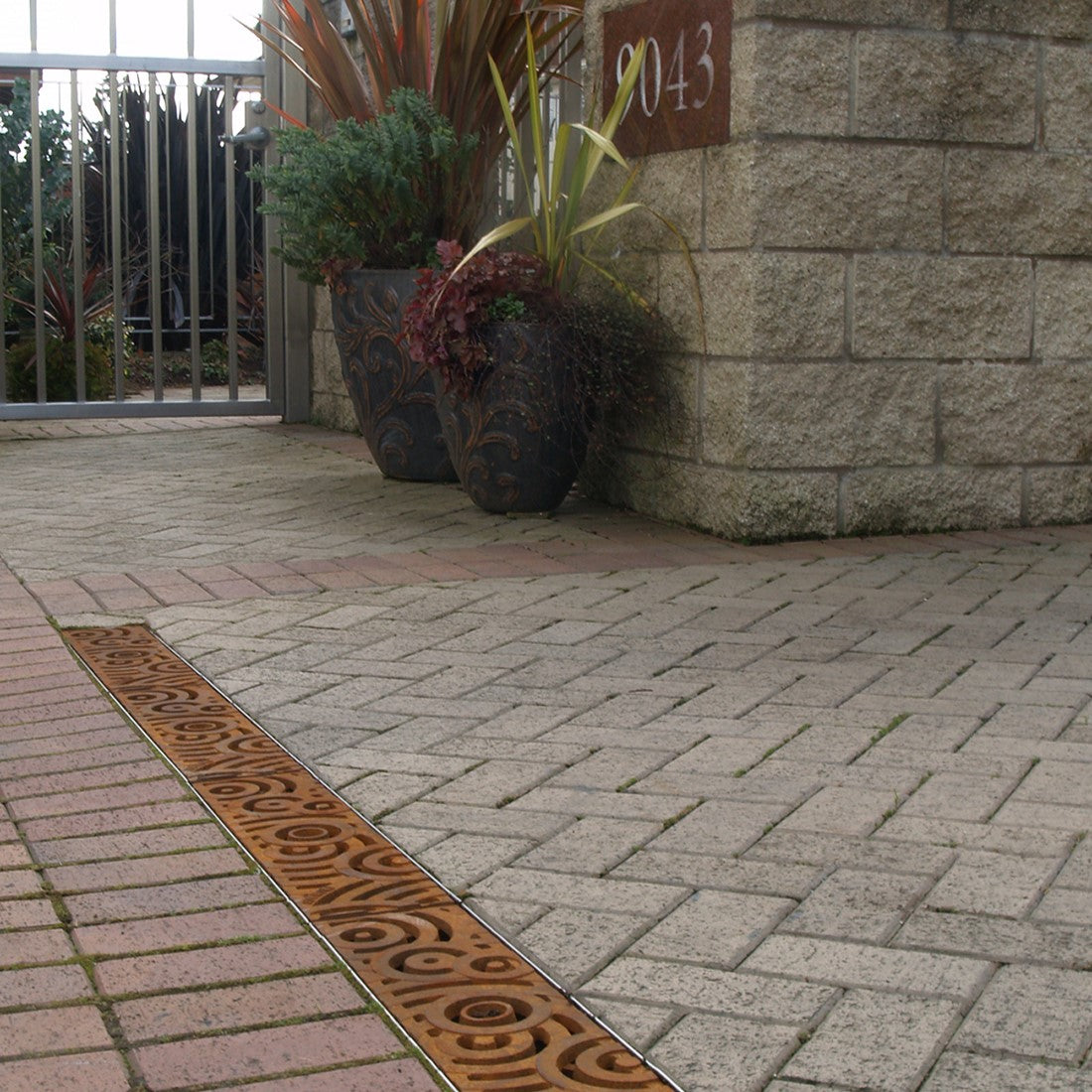

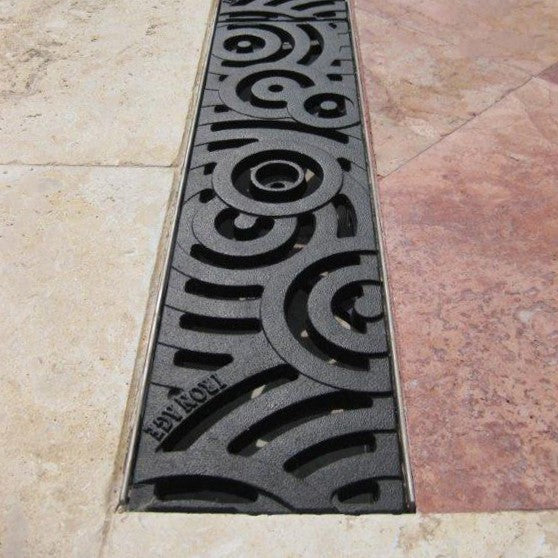

| Product Gallery | |
|---|---|
| |
