Locust 12" Square Heel Proof
Cast Iron Channel Grate

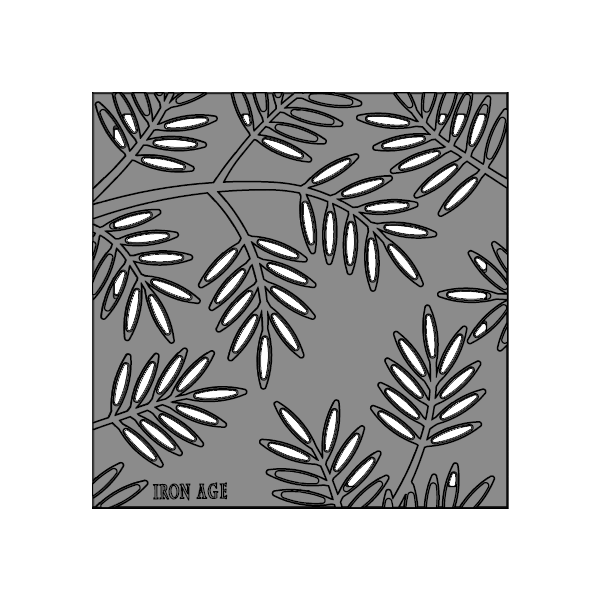

![](http://www.lateraldesignstudio.co.uk/cdn/shop/files/Locust_12_x_12_HP_Drawing_1.png?v=1702476829)
Product Description |
---|
The popularity of our Locust pattern points to a natural affinity for organic design elements. Available in a wide range of shapes and sizes, these signature grates are designed to be combined into any number of unique applications.
Product Spec |
---|
Locust 12" Sq. Heel Proof | |
---|---|
Dimensions | 295.40 mm x 295.40 mm x 28.70 mm |
Material | Cast Ductile Iron |
Standard Finish | Raw |
Optional Finish(es) | Post Rust Finish, Powder Coating |
Weight | 6.42 kg |
Free Drain Area | 8.41% |
Gallons Per Minute (GPM) | 14.90 |
Recycled Content | 80% |
