This product uses our range of standard 5 inch channels and accessories, available in plastic, polyconcrete, and fibre composite.

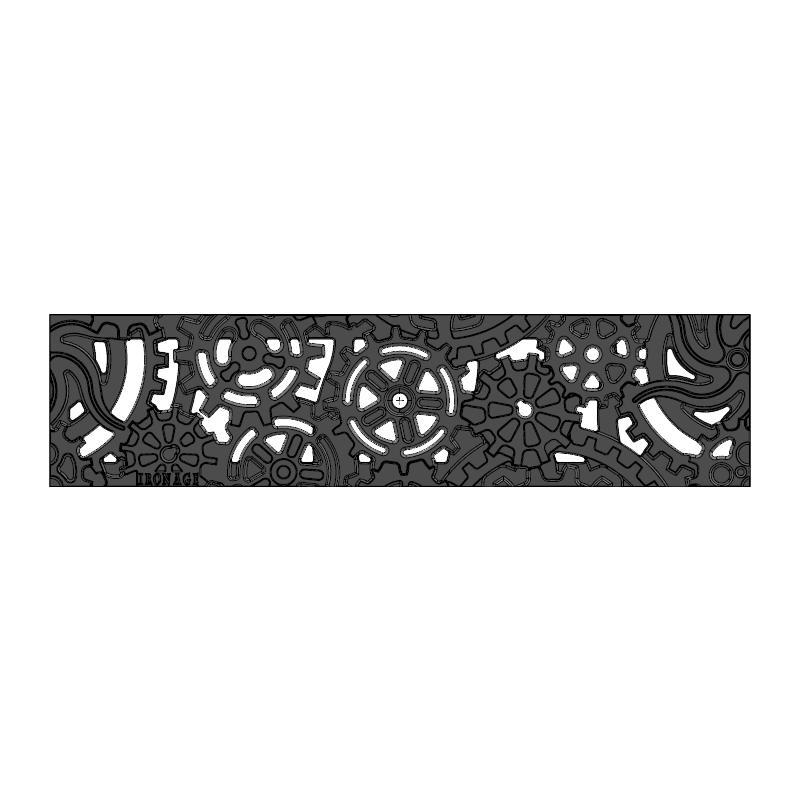

Dynamo 5" x 20"
Cast Iron Channel Grate
| Product Description |
|---|
The lively, interlocking gear design of our Dynamo Trench Grate adds an energising element to any hardscape environment.
| Dynamo 5" x 20" | |
|---|---|
| Dimensions | 122.17 mm x 496.82 mm x 20.57 mm |
| Material | Cast Ductile Iron |
| Standard Finish | Raw |
| Optional Finish(es) | Post Rust Finish, Powder Coating |
| Weight | 4.38 kg |
| Free Drain Area | 13.3% |
| Gallons Per Minute (GPM) | 16.41 |
| Recycled Content | 80% |
| Product Gallery | |
|---|---|
| |
